Hand Pallet Truck
Product Model :
  • HP20S
  • HP20L
  • HP25S
  • HP25L
  • HP30S
  • HP30L

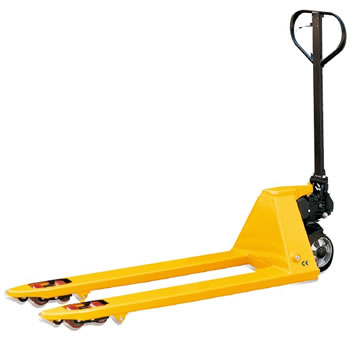

Hand Pallet Truck   HP series


* A built in overload valve and totally sealed hydraulic pump.
* German seal kit offers long span life of pump for 2 years warranty.
* Heavy duty and reinforced forks for greatest strength and durability.
* Entry rollers prevent physical exertion of the operator and protect load rollers and pallet.
* Maintenance free oiless bushings at key points offer you less operating force and longer span life of pallet truck.
Conforms to EN1757-2.

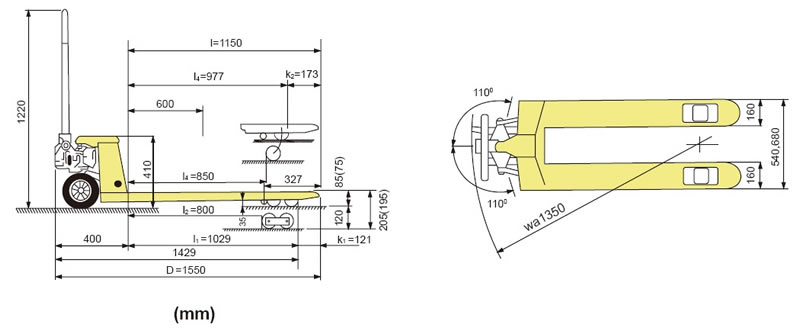

 Model



 HP20S

 HP20L

 HP25S

 HP25L

 HP30S

 HP30L

 Capacity

(kg)

 2000

 2000

 2500

 2500

 3000

 3000

 Max. Fork Height

(mm)

 205 (or 195)

 205 (or 195)

 205 (or 195)

 205 (or 195)

 205 (or 195)

 205 (or 195)

 Min. Fork Height

(mm)

 85 (or 75)

 85 (or 75)

 85 (or 75)

 85 (or 75)

 85 (or 75)

 85 (or 75)

 Fork Length

(mm)

 1150

 1220

 1150

 1220

 1150

 1220

 Width Overall Forks

(mm)

 540

 680

 540

 680

 540

680

 Individual Fork Width

(mm)

 160

 160

 160

 160

 160

 160

 Load Roller

Dia.xWidth (mm)

  Φ 80×70 (or Φ70×70) Nylon, Polyurethane

 Steering Wheel

Dia.xWidth (mm)

 Φ200×50 (or Φ180×50) Nylon, Polyurethane, Rubber

 Net Weight

(kg)

 78

 82

 80

 84

 85

89

 Quick Lift (6 pump strokes)



 HPQ20S

 HPQ20L

 HPQ25S

 HPQ25L

 HPQ30S

 HPQ30L

 With Hand Brake



 HPH20S

 HPH20L

 HPH25S

 HPH25L

 HPH30S

 HPH30L

 With Deadman Brake



 HPD20S

 HPD20L

 HPD25S

 HPD25L

 HPD30S

 HPD30L

 With Foot Brake



 HPJ20S

 HPJ20L

 HPJ25S

 HPJ25L

 HPJ30S

 HPJ30L
