Rough Terrain Trucks
Product Model :
  • RP1000
  • RP1250A

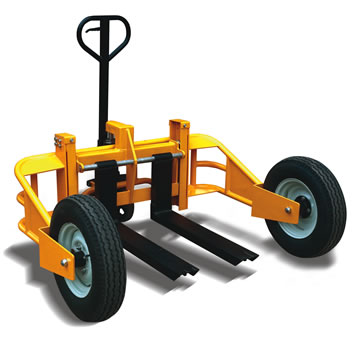

Rough Terrain Trucks    RP.A series

* Great equipment to move heavy loads up till 1250kg.
* Ergonomic design of the frame to reduce the operation effort.
* Meanwhile the truck is robust enough for the purpose to work outside such as builders yard,
garden centers where there are only an occasional need for moving pallets by forklifts or where
no ordinary forklift or even pallet truck can go. The fork is adjustable for special dimension pallet.

 Model

 RP1000

 RP1250A

 Rated Capacity

 (kg)

 1000

1250

 Max. Fork Height

 (mm)

240

240

 Min. Fork Height

 (mm)

70

70

 Fork Length

 (mm)

800(860)

800(860)

Load Length

 (mm)

400(430)

400(430)

 Adjustable Fork Width

 (mm)

 216-680

 256-680

Individual Fork Width

 (mm)

100

120

Distance inside the Front Wheel

 (mm)

1230

1230

Axle Distance between front wheel
and rear steering wheel

 (mm)

973

973

 Front Load Wheel

 Dia.×Width (mm)

 Φ568×145

 Φ568×145

 Rear Steering Wheel

 Dia.(mm)

 Φ250

 Φ250

Turn Radius

Wa(mm)

1500

1500

Overall Size

L×W×H

1406×1670×1280

1406×1670×1280

 Net Weight

 (kg)

 210

238
