“U” Low Lift Table
Product Model :
  • HU600
  • HU1000
  • HU1500

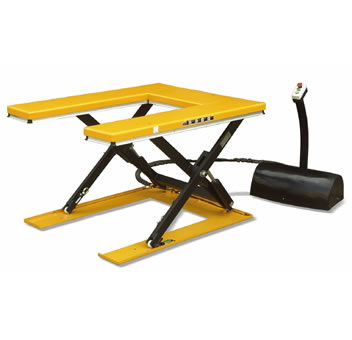

“U” Low Lift Table      HU series

* “U” Shaped Top Platform
* “U” shaped table are specially for handling pallets, no need for a pit or load.
* They are manufactured to all European safety standards including EN1570:1999.
* Remote power pack with pedestal and controls, protected to IP54.
* Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
* 24V control box with UP and DOWN buttons and emergency stop.
* External power pack equipped with a relief valve against overloading and a compensated
flow valve for controlling lowering speed.
* Hose burst safety valve to stop the lift table lowering in case of hose breakage.
* Removable lifting eyes to facilitate handling and installation of the lift table.
* Oiless bushings on pivot points.
* Quick assembly joint for oil hose.

 Model

 HU600

 HU1000

 HU1500

 Capacity

 (kg)

 600

 1000

 1500

 Max. Height

 H (mm)

 860

 860

 860

 Collapsed Height

 h (mm)

 85

 85

 105

 Platform

 LxW (mm)

 1450x985

 1450x1140

 1600x1180

 Lift Time

 (sec)

 25~35

 25~35

 30~40

 Power Pack



 380V/50Hz, AC1.1kw

 380V/50Hz, AC0.75kw

 380V/50Hz, AC1.5kw

 Net Weight

 (kg)

 207

 280

 380
