Low Profile Lift Table
Product Model :
  • HY1001
  • HY1002
  • HY1003
  • HY1004
  • HY1005
  • HY1501
  • HY1502
  • H

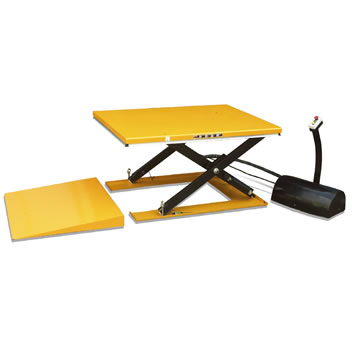

Low Profile Lift Table          HY Series

* Heavy duty design with larger platform
* These tables achieve a low closed height, eliminating the need for a pit installation.
* They are manufactured to all European safety standards including EN1570:1999.
* Remote power pack with pedestal and controls, protected to IP54.
* Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
* 24V control box with UP and DOWN buttons and emergency stop.
* External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed. Power supply are AC 380V/50HZ/3phase.
* Hose burst safety valve to stop the lift table lowering in case of hose breakage.
* Removable lifting eyes to facilitate handling and installation of the lift table.
* Oiless bushings on pivot points.
* Loading ramp is a standard equipment.

 Model

 Capacity

 Platform Size

 Min. Height

 Max. Height

 Stroke

Lifting Time

 Power Pack

 Net Weight



 (kg)

 LXW(mm)

 (mm)

 (mm)

 (mm)

 (second)



 (kg)

 HY1001

 1000

 1450×1140

 85

 860

 775

25

 380V/50HZ,AC 0.75kw

 357

 HY1002

 1000

 1600×1140

 85

 860

 775

 25

 380V/50HZ,AC 0.75kw

 364

 HY1003

 1000

 1450×800

 85

 860

 775

 25

 380V/50HZ,AC 0.75kw

 326

 HY1004

 1000

 1600×800

 85

 860

 775

 25

 380V/50HZ,AC 0.75kw

 332

 HY1005

 1000

 1600×1000

 85

 860

 775

 25

 380V/50HZ,AC 0.75kw

 352

 HY1501

 1500

 1600×800

 105

 870

 775

 30

 380V/50HZ,AC 1.5kw

 367

 HY1502

 1500

 1600×1000

 105

 870

 775

 30

 380V/50HZ,AC 1.5kw

 401

 HY1503

 1500

 1600×1200

 105

 870

 775

 30

 380V/50HZ,AC 1.5kw

 415

 HY2001

 2000

 1600×1200

 105

 870

 775

 35

 380V/50HZ,AC 2.2kw

 419

 HY2002

 2000

 1600×1000

 105

 870

 775

 35

 380V/50HZ,AC 2.2kw

 405
