Power Pallet Truck
Product Model :
  • TE20S AC
  • TE20L AC
  • TK20S AC
  • TK20L AC

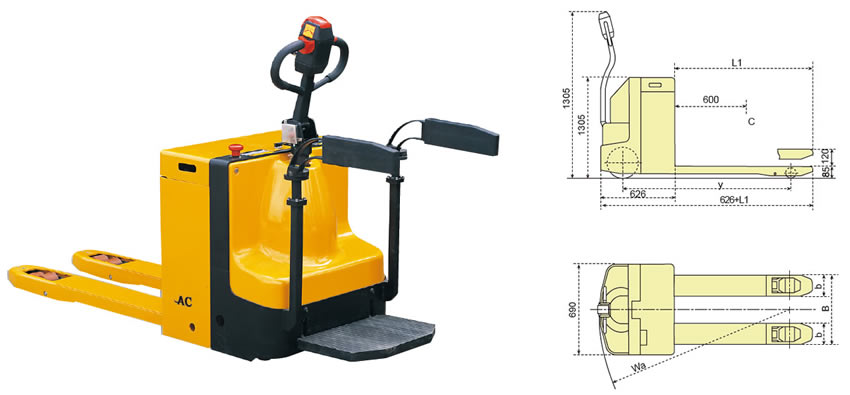

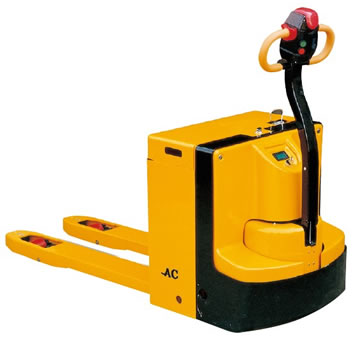

Power Pallet Truck TE-AC/TK-AC

AC Technology

* Maneuver loads up ramps and dockboards effortlessly.
* Compact design combines with new technology, making this pallet truck ideal for narrow,
cramped aisles. shortest head length in the market permits the possible maneuverability.
* Smooth stepless speed control with European technology.
* Power unit with European technology.
* Powerful traction battery.
* Powerful maintenance free AC drive motor.
* Drive unit with electromagnetic brake.

* Conforms to EN1726 and EN1175-1.



 Model



 TE20S AC

 TE20L AC

 TK20S AC

 TK20L AC

 Type



 without platform

 with platform

 Capacity

(kg)

 2000

 2000

 Load Center

C (mm)

 600

 600

 Max. Fork Height

H (mm)

 205

 205

 Min. Fork Height

h (mm)

 85

 85

 Fork Length

L1 (mm)

 1150

 1150

 Individual Fork Width

b (mm)

 160

 160

 Wheel Base

y (mm)

 1406

 1406

 Turning Radius

Wa (mm)

 1608

 1946

 Traveling Speed With/Without Load

(Km/h)

 3.6/5.4

 3.6/5.4

 Lifting Speed With/Without Load

(mm/s)

 22/32

 22/32

 Lowering Speed With/Without Load

(mm/s)

 50/55

 50/55

 Drive Wheel



 1200W, Φ250mm (AC)

 1200W, Φ250mm (AC)

 Power Unit (lifting motor)

(W/V)

 800/24

 800/24

 Traction Battery



 24V/210Ah, 185kg

 24V/210Ah, 185kg

 Battery Charger



 25A/24V

 25A/24V

 Overall Dimension

L×W×H (mm)

 1781×690×1305

 2125×690×1305

 Fork Overall Width

B (mm)

 530

 680

 530

 680

 Net Weight

(kg)

 324

 329

 338

 343

 Tiller



 O

 O

 O

 O
