Drum Stacker
Product Model :
|
Drum Stacker DA series
* Easy to lift, transport and tilt 55 gallon drum .
* Available to carry the drum to rack (lower than 1350mm)
* Tilt the drum 120° for oil empty.
* Compact and reliable mechanism system to fix drum.
* It can lock a drum in vertical position to avoid spills or horizontal.
* Position for draining through a faucet.
* Easily lift with pedal when unload.
.jpg)
|

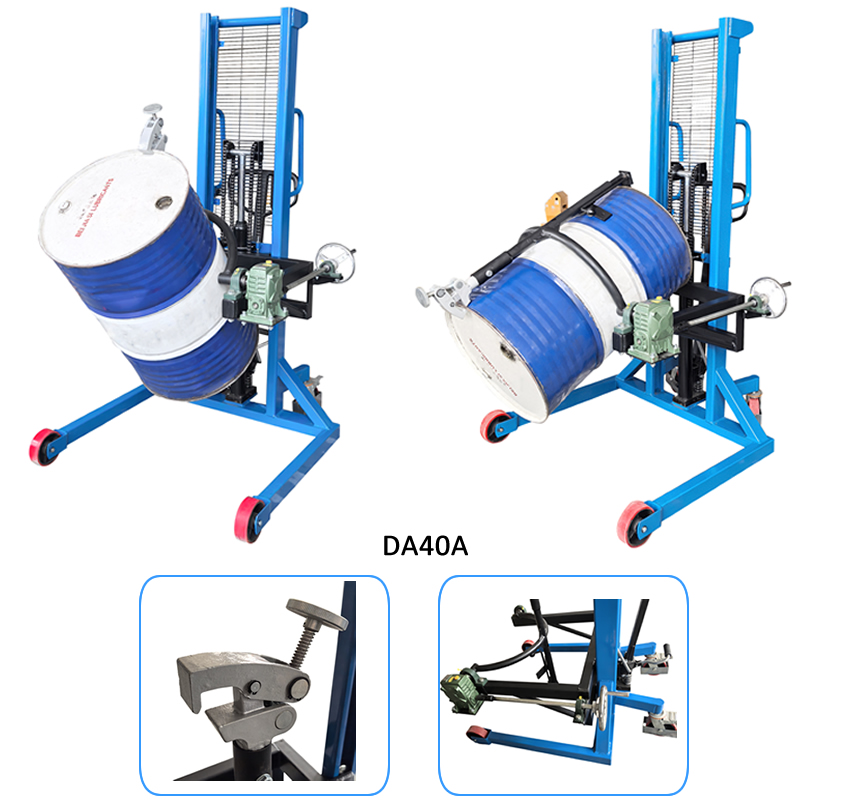

Model |
|
DA40A |
|
Capacity |
(kg) |
400 |
|
Drum Size |
|
572mm (22.5‘‘ Diameter), 210 Lifters (55 gallon) |
|
Lifting Height |
(mm) |
1350 |
|
Rear Castor |
Dia.×Width (mm) |
Φ180×50 |
|
Net Weight |
(kg) |
190 |
|

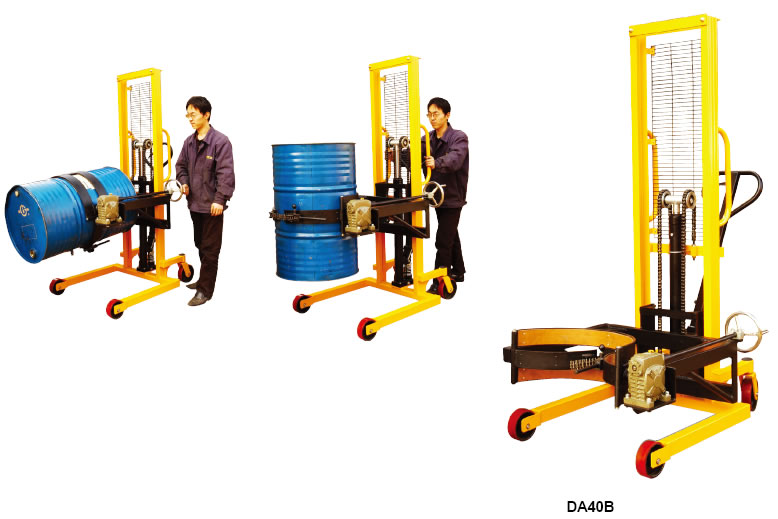

Model |
|
DA40B |
|
Capacity |
(kg) |
400 |
|
Drum Size |
|
572mm (22.5‘‘ Diameter), 210 Lifters (55 gallon) |
|
Lifting Height |
(mm) |
1350 |
|
Rear Castor |
Dia.×Width (mm) |
Φ180×50 |
|
Net Weight |
(kg) |
190 |
