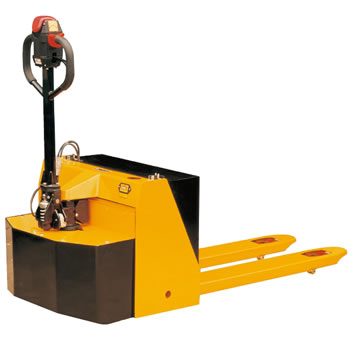

Semi-Electric Pallet Truck
Product Model :
  • SE15S
  • SE15L
  • SE20S
  • SE20L

Semi-Electric Pallet Truck    SE series

* Heavy Duty Design
* Brake system:
Integral electromagnetic disk brake mounted on motor shaft.
* Drive wheel:
complete gear train mounted on ball and roller bearing in oil bath
housing. High-torque horizontally mounted motor has copper graphite
brushes for excellent lubricate.
* Load roller:
Tandem Polyurethane: Φ78×70mm.

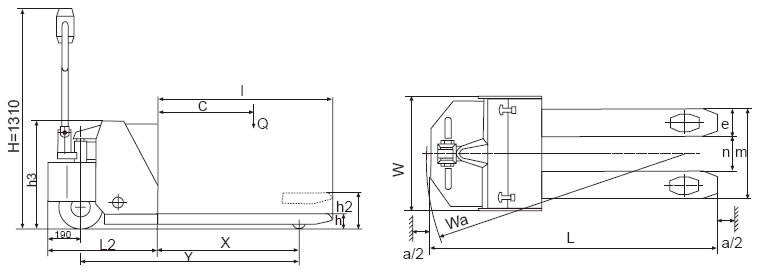

 Model

 SE15S

 SE15L

 SE20S

 SE20L

 Capacity

(kg)

1500

1500

2000

2000

 Max. Fork Height

h2 (mm)

 205 (or 195)

 205 (or 195)

 205 (or 195)

 205 (or 195)

 Min. Fork Height

h (mm)

 85 (or 75)

 85 (or 75)

 85 (or 75)

 85 (or 75)

 Fork Overall Width

m (mm)

520

680

520

680

 Travelling Speed

 With Load (km/h)

5

5

5

5

 Without Load (km/h)

6.5

6.5

6.5

6.5

 Overall Height

H (mm)

1310

1310

1310

1310

 Overall Width

W (mm)

730

730

730

730

 Dimension

 n (mm)

200

360

200

360

 h3 (mm)

620

620

620

620

 Wa (mm)

1350

1500

1350

1500

1350

1500

1350

1500

 Overall length

L (mm)

1650

1800

1650

1800

1650

1800

1650

1800

 Fork Length

l (mm)

1000

1150

1000

1150

1000

1150

1000

1150

 Load Centre

C (mm)

600

650

600

650

600

650

600

650

 Load distance

X (mm)

795

945

795

945

795

945

795

945

 Wheel Base

Y (mm)

1240

1390

1240

1390

1240

1390

1240

1390

 Net Weight (without nattery)

(kg)

215

223

225

233

238

247

248

257

 Drive Wheel, Ployurethane

  Motor 1200W, Wheel Φ250×80mm

  Motor 1200W, Wheel Φ250×80mm

 Battery (service free)

(Ah/V)

 80/24

 80/24

 Battery Charger

(A/V)

 8/24

 8/24

 Traction Battery (option)

(Ah/V)





 165/24

 165/24
