Complete Skate Kits
Product Model :
  • SK20
  • SK30
  • SK60

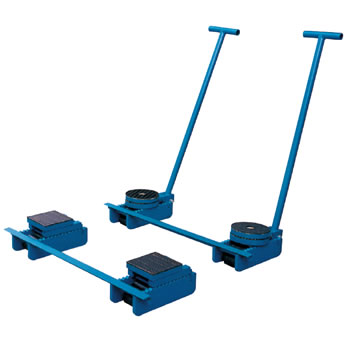

Complete Skate Kits       SK series

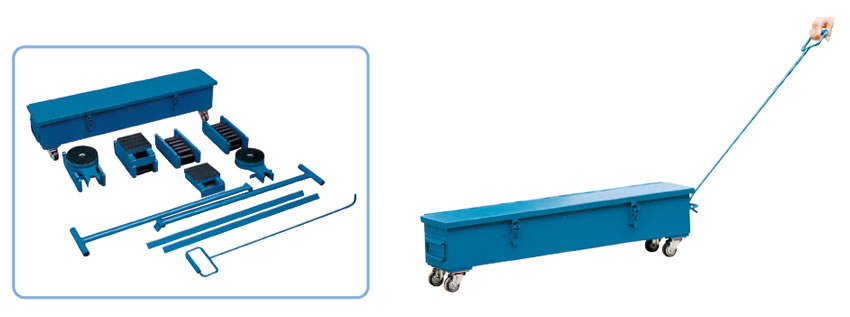

Including 4 roller skates, 2 turntables, 2 packing plates, 2 steering handles, 2 link-up bar, one draw bar, one metal box.

* For short, variable transportation distances.
* For installation works and movement of heavy loads.
* The steering handle give you precise control making it easy to manoeuvre large machinery or into tight areas.
* Moving speed no exceeding 5m / min.
* Minimum turning circle is 3m.

IMPORTANT!

* All maximum carrying capacities are based for use on a steel surface, Which withstands
the pressure of the chain-roller. For safety, the carrying capacities in complete sets are calculated so that 2 Roller Skates could support the full load on uneven surfaces.
* The track surface is important for the safe transportation of the load, not the carrying capacity of the Roller Skate. Tiles are unsuitable. Movement on tarmac and concrete is restricted. In these cases it is recommended to put a steel plate of a minimum of 10mm thickness underneath.
* Due to the little effort required to overcome the rolling resistance (4-7% of the total load) precautionary measures must be taken for use on inclined surfaces.



Model

SK20

SK30

SK60

Capacity

(tonne)

20

30

60

Length Support

(mm)

120

120

130

Width Support

(mm)

120

120

130

Total Height

(mm)

108

117

140

Rollers Dia.

(mm)

Φ18

Φ24

Φ30

Swivel Top

(mm)

Φ130

Φ130

Φ150

Weight of Set

(kg)

50

58

92
