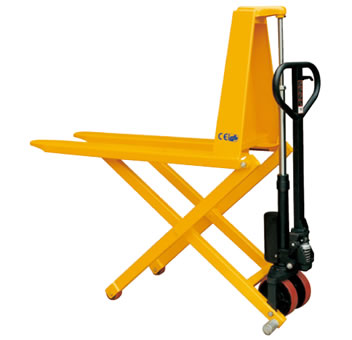

High Lift Scissor Truck
Product Model :
|
High Lift Scissor Truck HL series

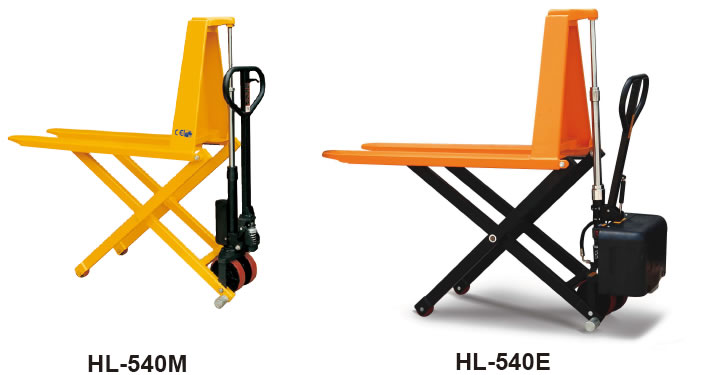

Model
HL-540M HL-680M HL-540E HL-680E Type Manual Electric Capacity (kg) 1000 (2200lbs) 1000 (2200lbs) 1000 (2200lbs) 1000 (2200lbs) Max. Fork Height (mm) 800 (31.5 inch) 800 (31.5 inch) 800 (31.5 inch) 800 (31.5 inch) Min. Fork Height (mm) 90 (3.5 inch) 90 (3.5 inch) 90 (3.5 inch) 90 (3.5 inch) Fork Overall Width (mm) 540 (21.3 inch) 680 (26.8 inch) 540 (21.3 inch) 680 (26.8 inch) Fork Length (mm) 1165 (45.3 inch) 1165 (45.3 inch) 1165 (45.3 inch) 1165 (45.3 inch) Battery (Ah/V) — — 54/12 54/12 Battery Charger (A/V) — — 8/12 8/12 Net Weight (without battery) (kg) 110 (242lbs) 125 (275lbs) 150 (330lbs) 165 (363lbs) Rollers: Nylon, Polyurethane. Wheels: Nylon, Polyurethane, Rubber. Materials and specification are subject to change without notice.
* Manual
Capacity 1000kg (2200lbs).
Larger piston offer real 1000kg full capacity.
* Conforms to EN 1757-4.
* Electric
Capacity 1000kg (2200lbs).
High quality hydraulic motor made in Italy.
* Conforms to EN 1757-4 and EN 1175.
