Corner Movers
Product Model :

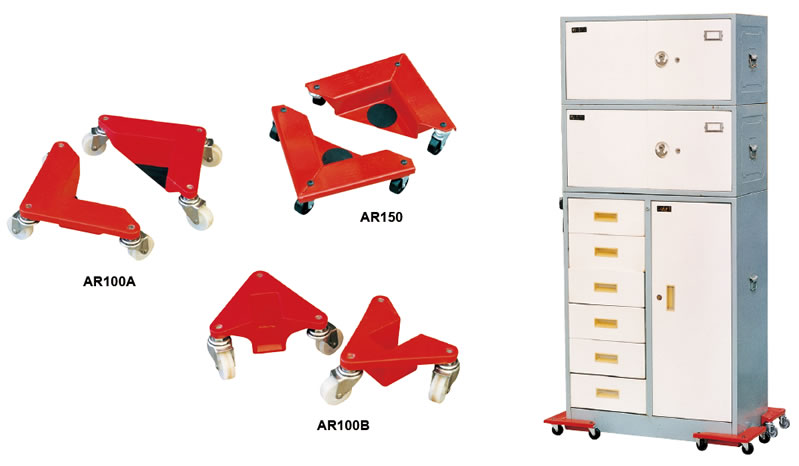

  • AR100A
  • AR100B
  • AR150

Corner Movers      AR series

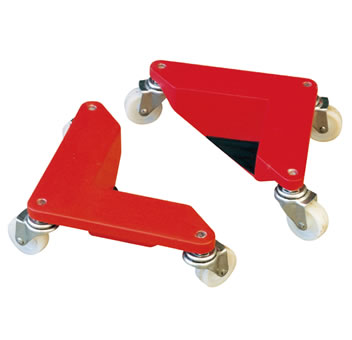

* Low level corner bogies essentially used to move awkward rectangular loads.
* Give mobility in locations where normal equipment for such handling cannot be used.
* Easy to position-lift one side of load by a transport jack and slide in corners, then repeat for other side.
* Load platform covered with ribbed rubber for load protection.
* AR100A and AR100B are made of casting aluminum.
* AR150 frame is made of press steel.
* 3pcs ball bearing castors in each corner mover.
* Sold in one set (4pcs) only.



Model

AR100A

AR100B

AR150

Max. Load Each

(kg)

100

100

150

Castor Diameter

(mm)

Φ50×20

Φ50×20

Φ50×20

Load Height

(mm)

15

15

15

Overall Size

(mm)

305×165×85

195×165×85

366×204×85

Frame Material

Aluminium

Aluminium

Steel

Net Weight Per Set

(kg)

5.6

8
