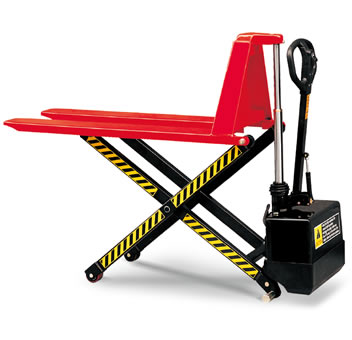

Electric High Lift Scissor Truck
Product Model :
  • JE5210
  • JE6810
  • JE5215
  • JE6815

Electric High Lift Scissor Truck      JE series

World class performance

* Character: These electric high lift pallet trucks have further advantages when working with heavy items and constant daily use. They are ideal as combined hand pallet truck and lift table.
* Adjustable stabilizers extended to the floor automatically when the forks reach a height of 420mm, to ensure maximum stability and optimum braking.
* Ergonomic warm handle offers you simple and comfortable operation.
* Top quality power unit made in Europe.
* Conforms to EN1757-4 and EN1175.

 Model

 JE5210

 JE6810

 JE5215

 JE6815

 Capacity

(kg)

 1000

 1000

 1500

 1500

 Max. Fork Height

(mm)

 800

 800

 800

 800

 Min. Fork Height

(mm)

 85

 85

 85

 85

 Fork Overall Width

(mm)

 520

 680

 520

 680

 Fork Length

(mm)

 1140

 1140

 1100

 1100

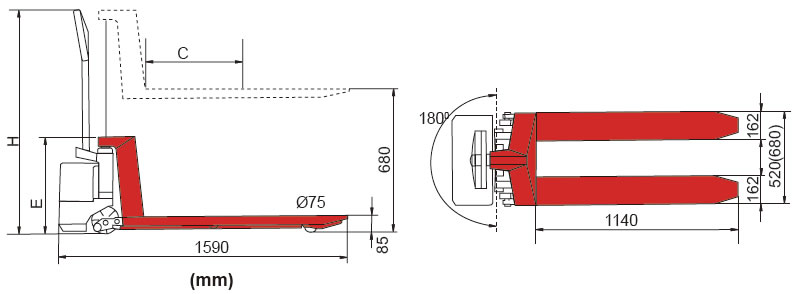

 Dimension

C (mm)

 600

 600

 600

 600

E (mm)

 530

 530

 530

 530

H (mm)

 1250

 1250

 1250

 1250

 Battery

(Ah/V)

 70/12

 70/12

 70/12

 70/12

 Battery Charger

(A/V)

 10/12

 10/12

 10/12

 10/12

 Net Weight

(kg)

 140

 147

 149

 157
