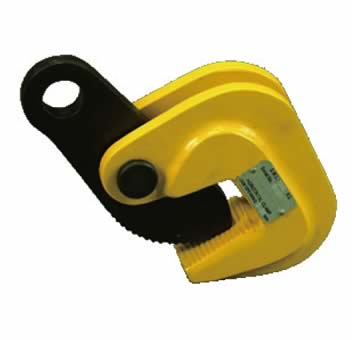

Horizontal Plate Clamp
Product Model :
  • PLL1
  • PLL2
  • PLL3.2
  • PLL5
  • PLL6
  • PLL10

Horizontal Plate Clamp      PLL series

* Suitable for lifting and transport of steel plates construction and profiled bar in horizontal position.
* Manufactured from high quality carbon steel.
* Avoid snatch or shock loading.

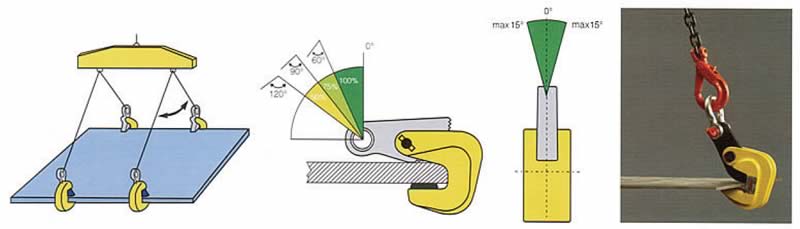

*The working load limit is the maximum load that the clamp are authorized to support when used in pairs with a lift angle of 60°.
In lifting operations the clamps can be used in pairs or multiples.


Model

WLL
(tonnes)per pair

Jaw Opening
(mm)

Weight
(Kg)

PLL1

1.0

0-30

4

PLL2

2.0

0-50

5.5

PLL3.2

3.2

0-60

8

PLL5

5.0

10-80

11.5

PLL6

6.0

10-100

14.5

PLL10

10.0

20-120

30
