Horizontal Plate Clamp
Product Model :
  • PLM0.8
  • PLM1
  • PLM1.6
  • PLM2
  • PLM3.2
  • PLM4
  • PLM5
  • PLM6
  • PLM6

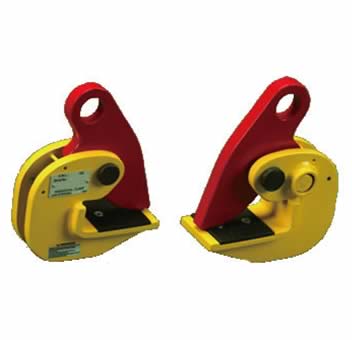

Horizontal Plate Clamp           PLM series

* Suitable for lifting and transport of steel plates construction and profiled bar in horizontal position.
* Manufactured from hith quality carbon steel.
* Avoid snatch or shock loading.

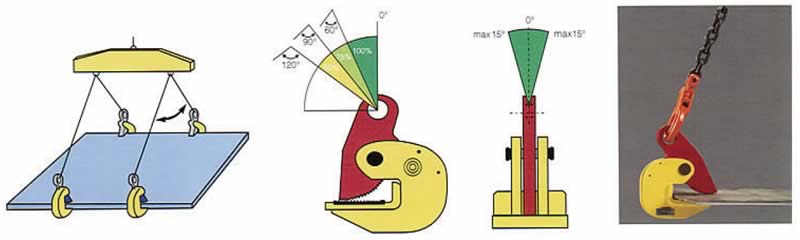

* The working load limit is the maximum load that the clamp are authorized to support when used in pairs with a lift angle of 60°.
In lifting operations the clamps can be used in pairs or multiples.
* The screw jaw of the body can be changed, also have a safety button.


Model

WLL
(tonnes)per pair

Jaw Opening
(mm)

Weight
(Kg)

PLM0.8

0.8

0-25

2.5

PLM1

1.0

0-30

3.5

PLM1.6

1.6

0-30

4

PLM2

2.0

0-40

5

PLM3.2

3.2

0-45

6

PLM4

4.0

0-50

6.5

PLM5

5.0

0-55

7.5

PLM6

6.0

0-65

10.5

PLM6(B)

6.0

0-130

22

PLM8

8.0

0-100

22

PLM10

10.0

0-125

33
