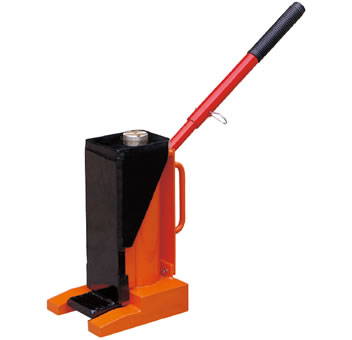

Machinery Jack
Product Model :
  • TB100

Machinery Jack       TB100

  Professional class

* Conforms to CE safety standard.

  Static loading capacity on top 10 tonne.



Model

Lifting Capacity

Lifting
Stroke

Lifting Range
of Top

Min. Loading Height
Using Lifting Toe

Min. Loading Height
Using Lifting Toe at
Max. Adjustment

Lifting Range
of toe

Net Weight

on top

on toe

TB100

7.5 tonne

6 tonne

160mm

320-560mm

35mm

160mm

35-195mm

25 kg
