Grip Puller
Product Model :
  • ZNL800
  • ZNL1600
  • ZNL3200

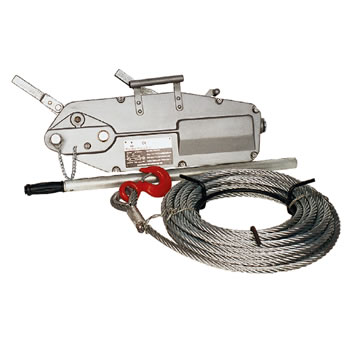

Grip Puller      ZNL series

* Light weight,compact,high strength aluminium housing.
* Overload protection ensures high personal safety when in operation
* Specially built-in shear pins are be replaced without removing the load.
* The hoist has low maintenance requirements and is easy to service.
* Easy,smooth installation of the wire rope.
* Long rope movement per each lever stroke.
* 150% overload testing.
* Operable in the vertical,horizontal and diagonal planes.
* Manufactured according to machinery directive 98/37/EC.
* Standard wire rope length is 20 meter.30,40,50meters are for option.



Model

Capacity

Rope movement per
 full stroke cycle

Rope Diameter

Hand Effort Max.

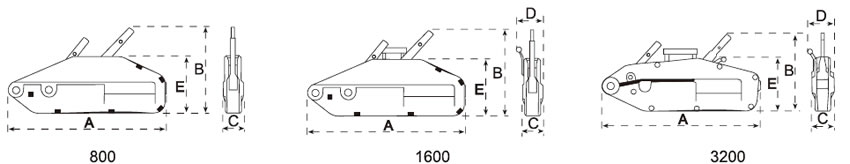

Dimensions(mm)

Net Weight
 Without Rope

(kg)

(mm)

(mm)

(kg)

A

B

C

D

(kg)

ZNL800

800

52

8.3

32

426

235

59

64

6

ZNL1600

1600

55

11

42

545

280

72

97

11.9

ZNL3200

3200

28

16

44

660

325

94

116

22
