Wire Rope Winch
Product Model :
  • EWH250-15
  • EWH250-30
  • EWH500-15
  • EWH500-30
  • EWH1100-10

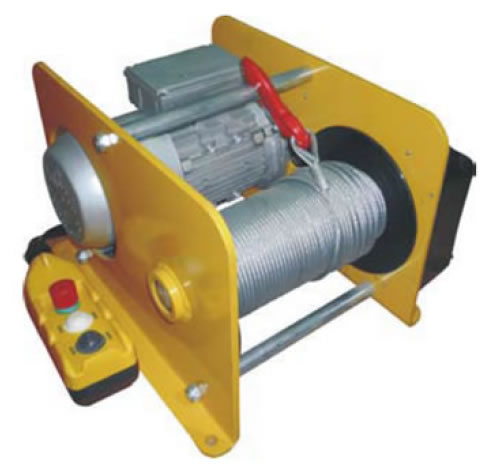

Wire Rope Winch      EWH series
* Wire rope winches series are designed explicitly for performance,effciency and
safety and offer many advantages and options. Their extremely compact,practical
cube desige and universal rope lead-pffs allow individual applications in almost
any position and make them powerful aids for lifting and pulling loads.
* Every winch is factory tested with overload.
* In accordance with DIN 15020,safety regulation VBGB(winch lift and pull equipment)
and the EC machinery directives.
* Compact dimensions due to internal brake motor,standed:Euro-voltage 230/400V.
50Hz.3-phasee,protected to IP54,insulation class F.
* Spur gear transmission with helical first gear ensures smooth.Lubricated by grease
and can,therefore,be used in any position
* Spring pressure disc brake incorporated in the moyor holds the load secure even
in the event of a power failure.
* Plain rope drum standard.
* The rope is secured to the drum In a recess so that the rope can be would onto the
drum in several layers without damages’
* Direct control as standard.




Model

EWH250-15

EWH250-30

EWH500-15

EWH500-30

EWH1100-10

Pulling Force

(daN)

250

250

500

500

1100

Lifting Speed

(m/min)

15

30

15

30

10

Rope

Φ (mm)

5

5

6

6

9

Motor Performance

(KW)

0.55

1.1

1.1

2.2

2.2

Useable Rope Length

1st Layer(m)

13.7

13.7

16.4

16.4

11

2st Layer(m)

28.5

28.5

34

34

23.3

3stLayer(m)

45

45

53

53

36.9

4st Layer(m)

62.5

62.5

73.4

73.4

52

Weight Without Rope

(kg)

55

59

90

96

98

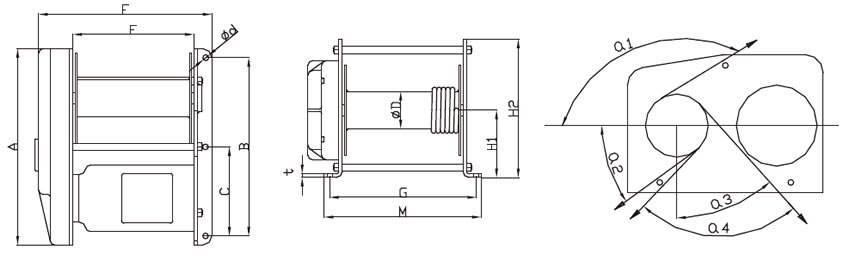

Dimension

A

430

430

515

515

515

B

292

292

480

480

480

C

240

240

240

D

80

80

120

120

120

d

13

13

15

15

15

E

380

380

415

415

415

F

265

265

270

270

270

G

322

322

336

336

336

H1

145

145

176

176

176

H2

300

300

365

365

365

M

345

345

370

370

370

t

8

8

10

10

10

a1

149°

149°

150°

150°

150°

a2

36°

36°

33°

33°

33°

a3

42°

42°

39°

39°

39°

a4

86°

86°

89°

89°

89°
