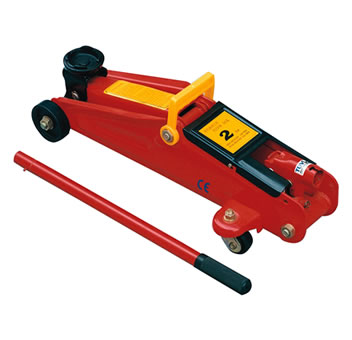

Floor Jack HF series

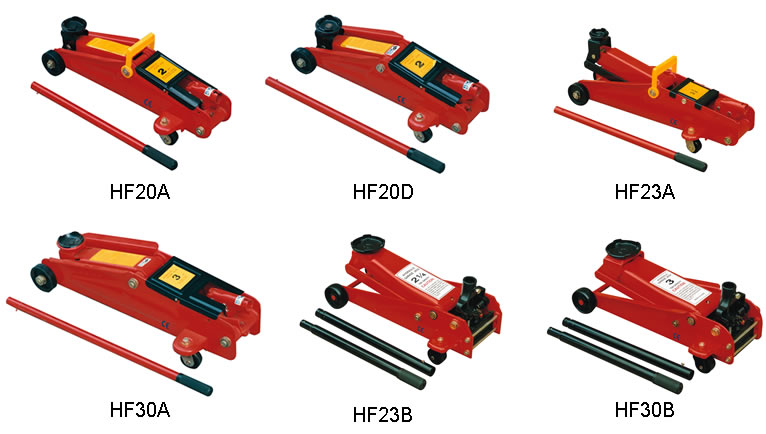

Product Model :
  • HF20A
  • HF20D
  • HF23A
  • HF30A
  • HF23B
  • HF30B

Floor Jack      HF series

* Features a one-piece lift arm with dual leveling mechanism and reinforced flanged side frames for added strength under load.
* Patented safety bypass system prevents overextension and accidental overloading.
* Double swivel saddle and heavy steel casters allow safe, easy positioning.

Model

Capacity
(kg)

Min./Max. Height
(mm)

Overall Size
(mm)

Packing Size
(mm)

Net Weight
(kg)

Safety Std.

Application

HF20A

2000

135/385

550×212×140

555×235×155

12

CE / GS

Light duty

HF20D

2000

135/342

471×199×135

480×210×145

9.5

CE / GS

HF23A

2250

135/385

550×212×140

555×235×155

13

ANSI / ASME

HF30A

3000

135/395

628×252×168

640×267×179

19

CE / GS

HF23B

2250

135/490

692×346×176

735×386×181

34

CE / GS

Heavy duty

HF30B

3000

135/490

660×346×180

738×385×203

36

CE / GS
