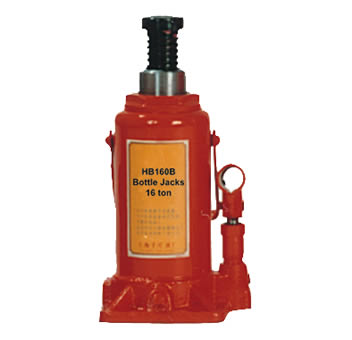

Hydraulic Bottle Jack HB series
Product Model :
  • HB16C
  • HB32C
  • HB50C
  • HB80C
  • HB100C
  • HB125C
  • HB160C
  • HB200

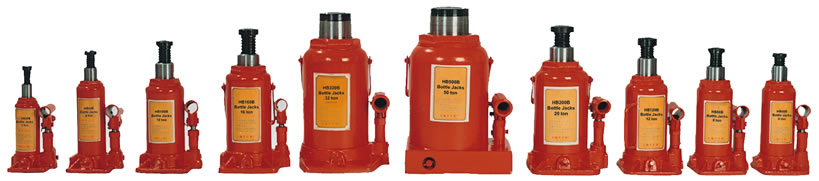

Hydraulic Bottle Jack    HB series

* Versatile jacks can be used vertically (not upside down) or at any angle to not more than 5 degrees from vertical position.
* Can also be used horizontally or vertically in appropriately designed fixtures.
* Machined and polished cylinder walls ensure straight lifts, preventing uneven wear.
* Heat treated adjustable extension screw with cleaned lift saddle prevents slippage.
* Bottle jacks with lifting capacity of 12 tons and over have carrying handle for convenient moving or positioning.
* Patented bypass mechanism protects hydraulic cylinder from overpumped. Durable baked blue enamel finish.
* Conforms to ANSI/ASME safety standards / CE standard.



Model

Rated
Capacity
(kg)

Minimum
Height
(mm)

Lifting
Height
(mm)

Adjust
Height
(mm)

Operating Force
of Handle
(N)

Net
Weight
(kg)

HB16C

1600

158

90

60

400

2.5

HB32C

3200

195

125

60

400

3.7

HB50C

5000

197

125

80

400

5.0

HB80C

8000

200

125

70

400

6.5

HB100C

10000

217

125

70

400

7.5

HB125C

12500

227

135

80

400

9.5

HB160C

16000

242

145

70

400

11.5

HB200C

20000

245

145

70

400

12.5

HB300C

30000

285

180

--

400

23.0

HB500C

50000

300

180

--

400

34.0
