Two-steps Hydrauilc Jacks

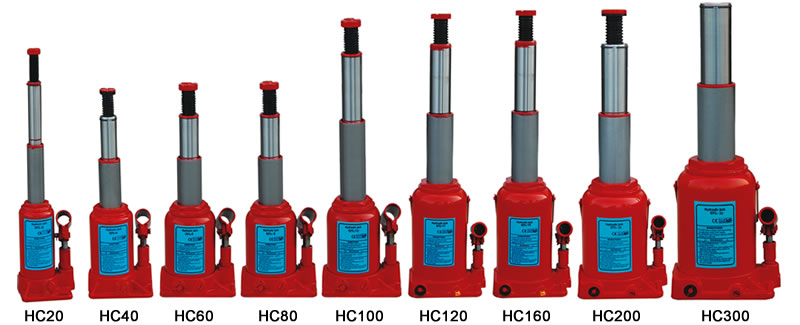

Product Model :
  • HC20
  • HC40
  • HC60
  • HC80
  • HC100
  • HC120
  • HC160
  • HC200
  • HC300

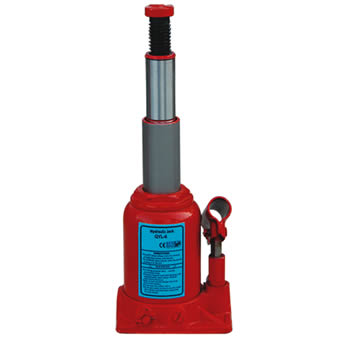

Two-steps Hydrauilc Jacks   HC series

* Provide a high lift with a minimum collapsed height.
* Can be used vertically (not upside down) or at any  angle to not more than 5 degree from vertical position.
   ave low operating force and large range capacity.
* Conforms to ASME/ANSI-PALD standards
.



Model

Capacity
(tonne)

Min. Height
(mm)

First lifting
Height (mm)

Second Lifting
Height (mm)

Adjust Height
(mm)

Packing Size
(cm)

Net Weight
(kg)

HC20

2

165

98

92

55

60×21×20

2.9

HC40

4

150

80

80

35

61×14×22

4.5

HC60

6

154

80

80

40

47×16×21

5.5

HC80

8

156

80

80

40

47×16×21

6.5

HC100

10

225

140

145

50

38×19.5×26

8.5

HC120

12

230

140

145

50

38×19.5×26

10.5

HC160

16

232

140

145

50

38×19.5×26

13

HC200

20

235

140

145

50

20.5×20×26

16.5

HC300

30

250

140

140

--

24×22×27

25
