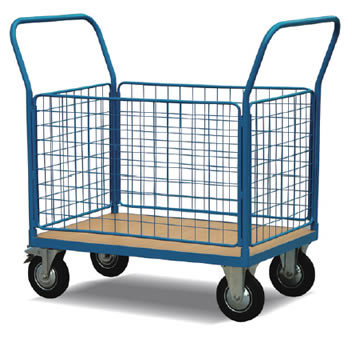

Platform Truck CZ series
Product Model :
|
Platform Truck CZ series
* For visual identification on the move, platform trucks with steel mesh panels.
* Panels individually removable.
* Load visible from all directions.
* Chassis manufactured from iron angle. Side panels made from mesh steel.
* 2 swivel castors with brake and 2 fixed wheels, rubber tyres, Φ200mm, roller bearings.
* Standard model power-coated blue RAL5012.
* Delivered flat packed for easy bolt-on assembly.
|
Model |
Max. Capacity |
Platform Size |
Platform Height |
Castor/Wheel |
Overall Size |
Net Weight |
|
(kg) |
L×W(mm) |
(mm) |
Dia.× Width (mm) |
L×W×H (mm) |
(kg) |
|
|

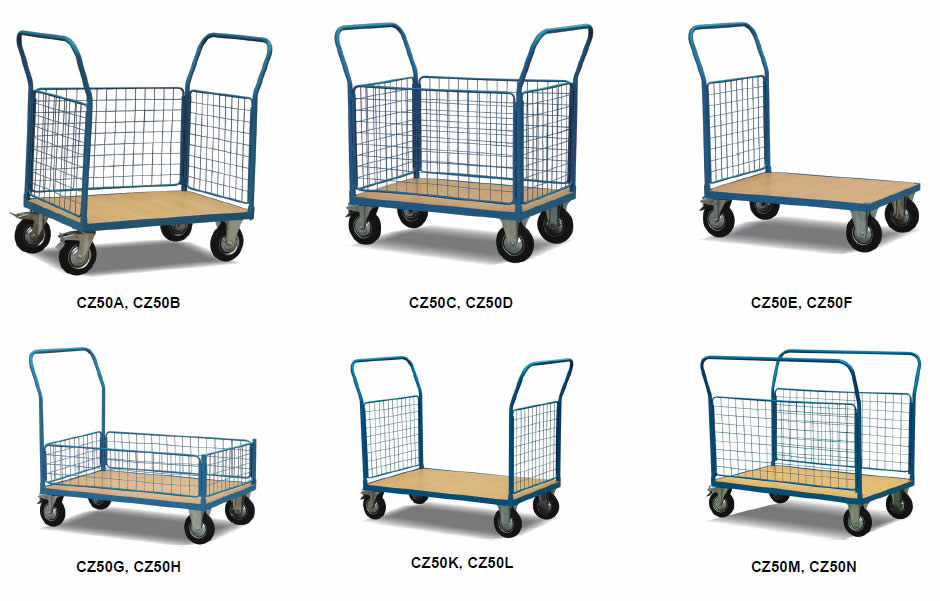

CZ50A |
500 |
1000×700 |
270 |
Φ200×45 |
1200×700×1170 |
44 |
|
CZ50B |
500 |
1200×800 |
270 |
Φ200×45 |
1400×800×1170 |
49 |
|
CZ50C |
500 |
1000×700 |
270 |
Φ200×45 |
1200×700×1170 |
45 |
|
CZ50D |
500 |
1200×800 |
270 |
Φ200×45 |
1400×800×1170 |
50 |
|
CZ50E |
500 |
1000×700 |
270 |
Φ200×45 |
1200×700×1170 |
35 |
|
CZ50F |
500 |
1200×800 |
270 |
Φ200×45 |
1300×800×1170 |
38 |
|
CZ50G |
500 |
1000×700 |
270 |
Φ200×45 |
1100×700×1170 |
40 |
|
CZ50H |
500 |
1200×800 |
270 |
Φ200×45 |
1300×800×1170 |
43 |
|
CZ50K |
500 |
1000×700 |
270 |
Φ200×45 |
1200×700×1170 |
41 |
|
CZ50L |
500 |
1200×800 |
270 |
Φ200×45 |
1400×800×1170 |
44 |
|
CZ50M |
500 |
1000×700 |
270 |
Φ200×45 |
1000×930×1170 |
43 |
|
CZ50N |
500 |
1200×800 |
270 |
Φ200×45 |
1200×1030×1170 |
46 |
