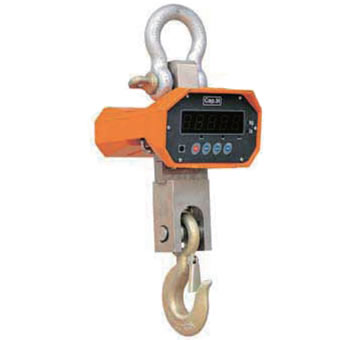

Crane Scale CW series
Product Model :
|
Crane Scale CW series
* A compact measuring device for weighing loads during lifting.
* Appropriate tackle can be attached to assist in the lifting and weighing.
* The crane weighers have a liquid crystal display (LCD), which can tare as well as show either the gross or net loads.
* It also indicates the load protection at 110% of the gross weight and the status of the battery.
* Conforms to CE safety standard.
|
Model |
|
CW05 |
CW10 |
CW20 |
CW30 |
CW50 |
CW100 |
CW150 |
|
Measuring Range |
(tonne) |
0-0.5 |
0-1 |
0-2 |
0-3 |
0-5 |
0-10 |
0-15 |
|
Indexing Accuracy |
(kg) |
0.2 |
0.5 |
1 |
1 |
2 |
5 |
5 |
|
Resolution Step |
(kg) |
4 |
10 |
20 |
20 |
40 |
100 |
100 |
|

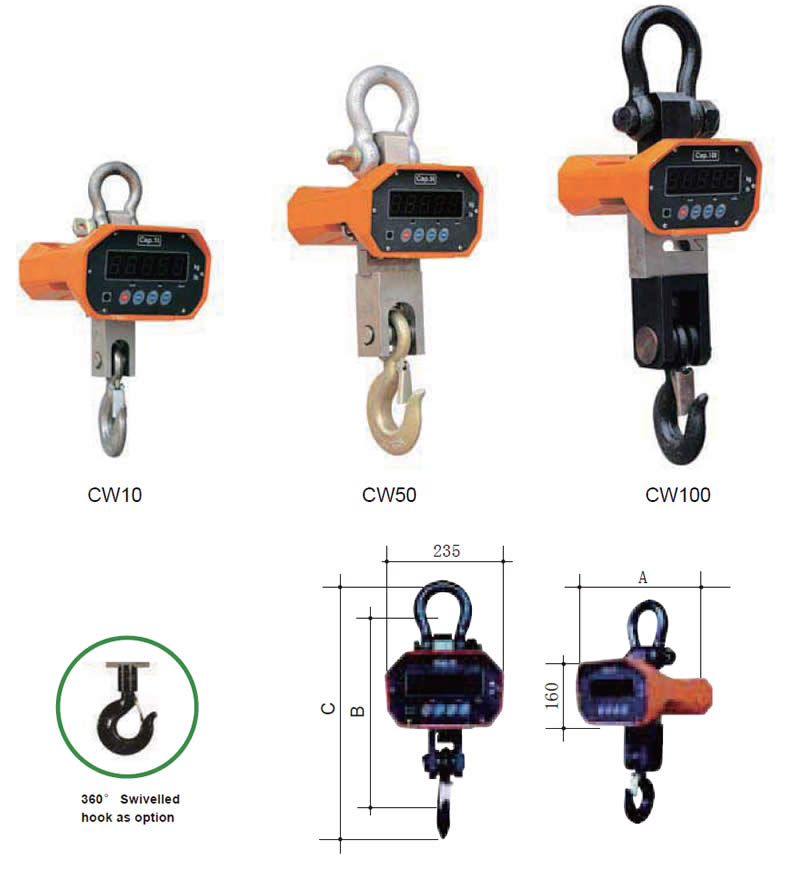

Dimension |
A(mm) |
315 |
315 |
315 |
315 |
315 |
355 |
355 |
|
B(mm) |
430 |
430 |
430 |
430 |
570 |
650 |
740 |
|
|
C(mm) |
540 |
540 |
540 |
540 |
710 |
820 |
930 |
|
|
Net Weight |
(kg) |
5 |
11 |
15 |
15 |
21 |
50 |
58 |
