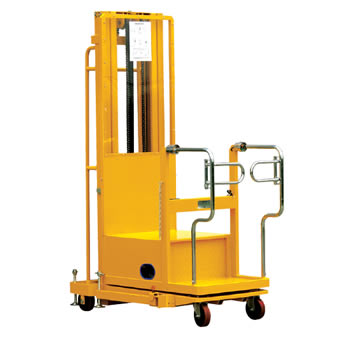

Order Picker FT series
Product Model :
|
Order Picker FT series
* Extra stabilizer and floor brake improved the stability.
* Capacity: 200kg.
* Lift height: 2720mm.
* Conform to EN280.
|
Model |
|
FT200 |
FT200A |
|
Capacity (including operator) |
(kg) |
200 |
200 |
|
Lowered Table Height |
(mm) |
480 |
550 |
|
Raised Table Height |
(mm) |
2720 |
3500 |
|
Platform Size |
(mm) |
640×600 |
640×600 |
|
Power Unit |
(W) |
DC 800 |
DC 800 |
|
Battery (service free) |
(Ah/V) |
85/12 |
85/12 |
|

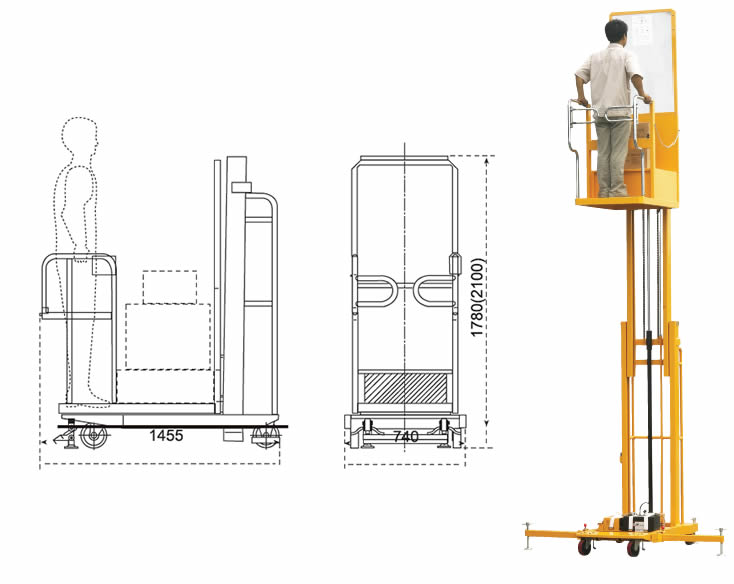

Overall Size |
(mm) |
1455×740×1780 |
1455×740×2100 |
|
Net Weight |
(kg) |
303 |
273 |
