Product Model :
  • PU10
  • PU20
  • PU30

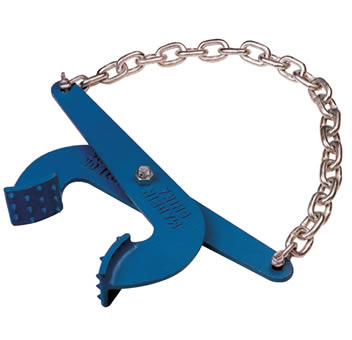

Pallet Pullers    PU Series

The pallet pullers are used to pull loaded pallets, slide heavy crates, etc., to edge of dock or truck, so it can
be picked up with forklift truck. Variable jaw width grabs pallet securely and automatically releases.
Rugged steel construction. 2-3/4” high heads are self-cleaning and unaffected by wood particles,
paint or grease. 1/4” proof coil chain included for attaching pull chain.

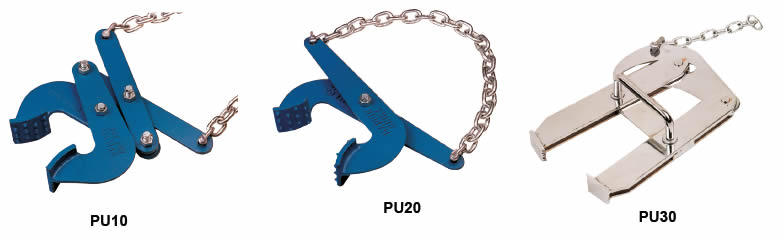

A. Double Scissor Action M odel: PU10
   one-piece curved heads have integral spurs for
   gripping pallet stringers.
   Scissor action 30” long. 30” long chain.

B. Single Scissor Action Mo del: PU20
   Single scissor action allow for wider jaw opening.
   Opens to 5-1/2”. Overall closed length: 19-1/2”.
   30” long chain.

C. Cammed Action Mo del: PU30
   cammed closing action provides maximum gripping strength and reduced pinch
   points. Safety handle enables easier positioning and removal of separated heads.
   Grip both metal and wood pallets with biting action.15-1/2” long. 7-1/2” long chain.


Model

Max. pallet weight (lbs)

For stringers

Length

Net Weight (lbs)

PU10

(kg)

5000

UP to 3

30

21

PU20

(mm)

5000

UP to 5-1/2

19-1/2

12

PU30

(mm)

4500

UP to 3-1/2

15-1/2

14
