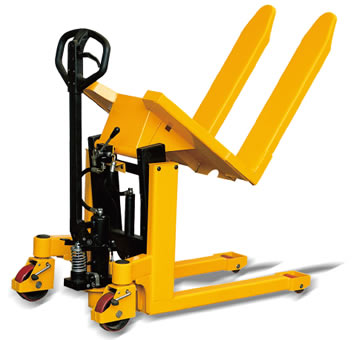

Pallet Tilter
Product Model :
|
Pallet Tilter LT series
Manual and Electric Version
* Designed to give the user and ergonomically correct position to reach
Loads easily without the necessity of bending down or stretching up.
* Handle can be turned and locked in position away from the work area.
* Applies to both sitting and standing positions.
* Forks can be tilted up to 90°.
* Both are supplied as standard with parking brake and foot protectors.
* Conforms to EN1757-1 and EN1175.
|

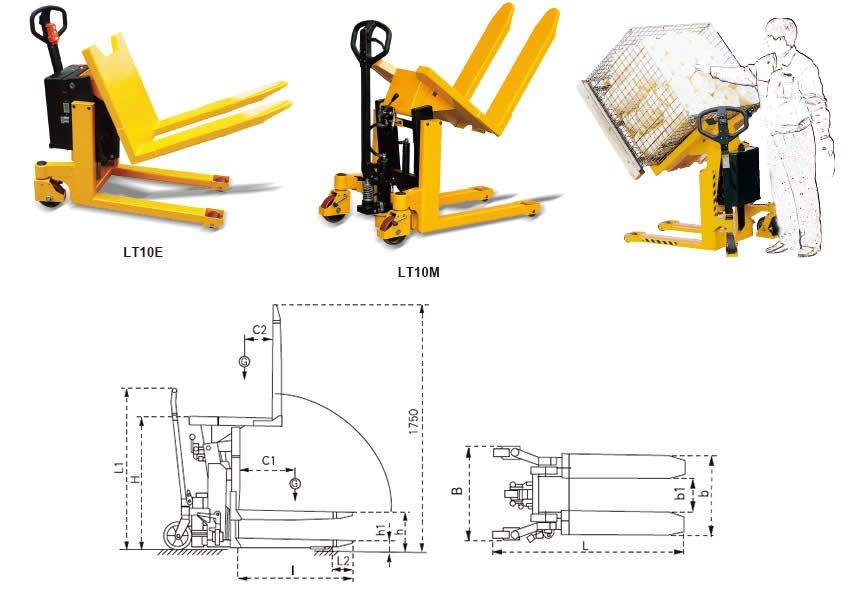

Model |
|
LT10M |
LT10E |
|
Type |
Manual |
Electric |
|
|
Capacity |
(kg) |
1000 |
1000 |
|
Lifting Height,Vertical |
h (mm) |
285 |
285 |
|
Min. Fork Height |
h1 (mm) |
85 |
85 |
|
Handle Height |
I (mm) |
800 |
800 |
|
Fork Length |
L1 (mm) |
1138 |
1138 |
|
Overall Fork Width |
b (mm) |
560 |
560 |
|
Width Between Forks |
b1 (mm) |
234 |
234 |
|
Fork Tip Length from Roller |
L2 (mm) |
135 |
135 |
|
Overall Width |
B (mm) |
638 |
638 |
|
Overall Length |
L (mm) |
1325 |
1410 |
|
Overall Height,Raised |
H (mm) |
950 |
950 |
|
Overall Height,Lowered |
H (mm) |
75 |
750 |
|
Load Centre Min. / Max. |
C1 (mm) |
200/400 |
200/400 |
|
Load Centre Min. / Max. |
C2 (mm) |
200/420 |
200/420 |
|
Power Unit |
(KW/V) |
--- |
0.8/12 |
|
Net Weight |
(kg) |
178 |
185 |
