Semi-Electric Stacker
Product Model :
  • MS1016A
  • MS1025A

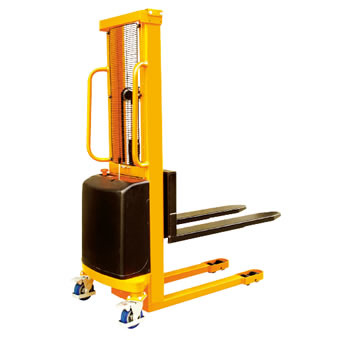

Semi-Electric Stacker  MS·A series

* Compact design and reliable mast construction.
* Safely guard on load roller and steering wheel.
* Light and easy manual steering system.
* Conforms to EN1757-1 : 2001, EN1727

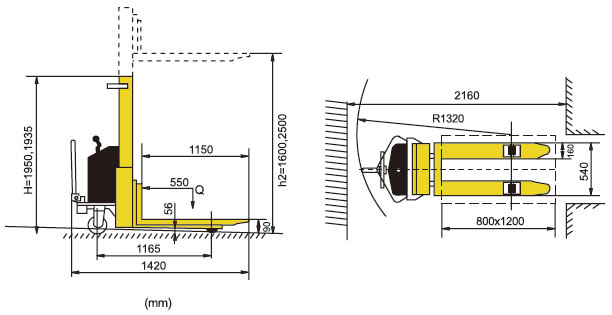

Model

MS1016A

MS1025A

Capacity

(kg)

1000

1000

Max.Fork Height

(mm)

1600

2500

Min.Fork Height

(mm)

90

90

Overall Length

(mm)

1420

1420

Overall Width

(mm)

780

780

Overall Height

(mm)

1950

1935 (two stage mast)

Fork Length

(mm)

1150

1150

Fork Overall Width

(mm)

540

540

Single Fork Width

(mm)

160

160

Front Wheel

(mm)

Nylon Φ78×80

Nylon Φ78×80

Rear Roller

(mm)

 PU Φ150×38

 PU Φ150×38

The Distance between The Two Rear Roller

(mm)

595

680

Battery

(Ah/V)

100/12

120/12

Weight of Battery

(kg)

29

38

Motors

(KW/V)

1.5/12

1.5/12

Lifting Speed(with & without load)

(mm/s)

62/118

62/118

Lowering Speed(with & without load)

(mm/s)

106/84

106/84

Net Weight (without battery)

(kg)

245

320

Steering Handle

O

O
