Lift & Tilt Table
Product Model :
  • BL15
  • BL40
  • BL80

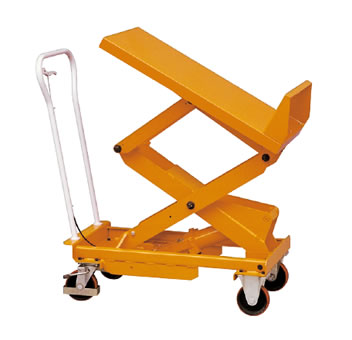

Lift & Tilt Table      BL series

* The Lift &Tilt Tables are specifically designed to allow an operator to feed and unload parts from tote boxes or containers quickly and easily without lifting, bending, stretching, or reaching.
* When in its lift and tilt position, the unit holds totes or containers at a comfortable working height and angle that allows operators to easily reach parts even at the bottom of the container.
* The working table is elevated by means of a foot actuated hydraulic cylinder. As the table is raised, it automatically tilts to an angle of 45 at full elevation. Built-in retaining lip keeps containers in place.

 Model

 BL15

 BL40

 BL80

 Capacity

 (kg)

 150

 400

 800

 Table Size

 TxW (mm)

 830x500

 830x520

 830x520

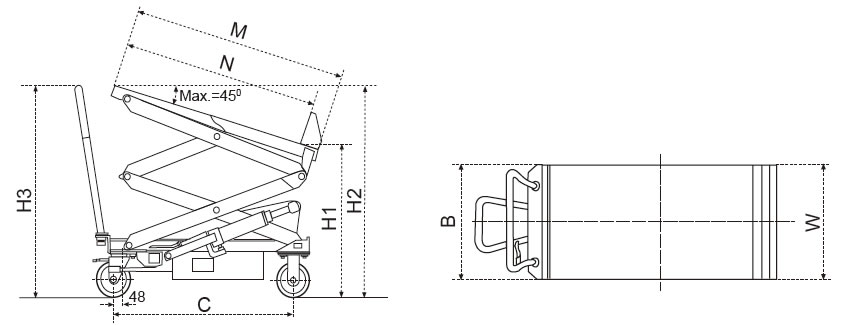

 Dimensions

 M (mm)

 830

 830

 930



 N (mm)

 748

 830

 830

 Table Height

 H1(min/max) (mm)

 415/880

 435/900

 440/1000

 H2(min/max) (mm)

 415/1400

 435/1560

 438/1570

 Handle Height

 H3 (mm)

 1100

 1130

 1130

 Wheel Dia.

 (mm)

 Φ125

 Φ150

 Φ150

 Overall Size

 BxC (mm)

 500x1010

 520x1355

 520x1355

 Foot Pedal to Max. Height

 20

 55

 80

 Net Weight

 (kg)

 92

 123

 145
