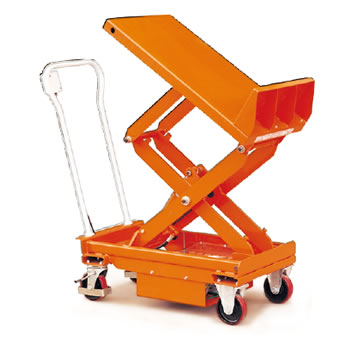

Electric Tilt Table
Product Model :
  • TS40
  • TS80

Electric Tilt Table      TS series

* Lifts heavy loads with ease.
* Allow an operator to feed and unload parts from tote boxes or containers quickly without bending down or

up, stretching or reaching.
* Power unit made in Europe, DC 700W.
* High quality battery service free 75Ah12V.
* A separate automatic charger.
* Two brakes on steering wheel increase safety.

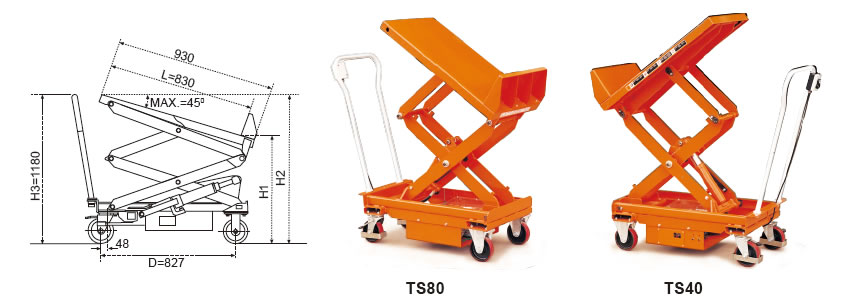

* Wheel Diameter 150mm, handle height 1180mm.

 Model

 Capacity

 Table Size

 Table Height (Min./Max.)

 Time to Max. Height

 Working Cycle

 Overall Size BxC

 Net Weight



 (kg)

 LxW (mm)

 H1 (mm)

 H2(mm)

(s)

 (fully charged)

 (mm)

 (kg)

 TS40

 400

 830x520

 500/990

 500/1620

 20

 45

 520x1185

 170

 TS80

 800

 830x520

 500/1000

 500/1620

 20

 45

 520x1260

 185
