Hydraulic Lift Tables
Product Model :
|

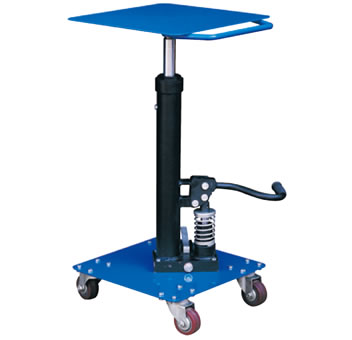

Hydraulic Lift Tables MD series
* Used as adjustable work bench, welder‘s positioning table, or leveling table.
* Ideal for punch presses, die handling, conveyors, brake presses, loading and unloading trucks and
maintenance operations.
* Two poly swivel and two rigid castors.
* Reliable foot brake.
|
Model |
Capacity |
Min.Height |
Raised Height |
Table Size |
Diameter of Castor |
Net Weight |
Post |
|
(kg/lbs) |
(mm/inch) |
(mm/inch) |
(mm/inch) |
(mm/inch) |
(kg/lbs) |
(pcs) |
|
|

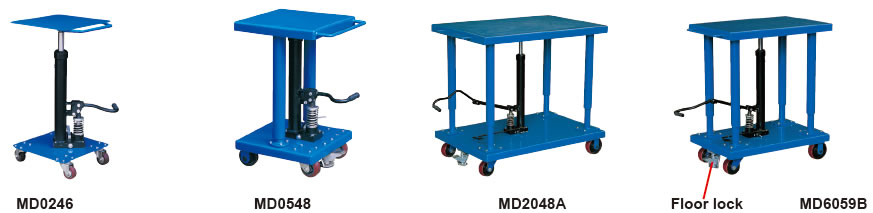

MD0246 |
90/200 |
740/29 |
1170/46 |
410×410/16×16 |
75/3 |
34.5/76 |
No |
|
MD0548 |
225/500 |
760/30 |
1220/48 |
460×460/18×18 |
100/4 |
69.5/153 |
two |
|
MD1048 |
455/1000 |
760/30 |
1220/48 |
460×915/18×36 |
100/4 |
90.5/202 |
two |
|
MD2048A |
900/2000 |
760/30 |
1220/48 |
610×915/24×36 |
100/4 |
102/225 |
four |
|
MD2048B |
900/2000 |
760/30 |
1220/48 |
815×1220/32×48 |
100/4 |
140/308 |
four |
|
MD2059A |
900/2000 |
940/37 |
1500/59 |
610×915/24×36 |
150(125)/6 |
187/412 |
four |
|
MD2059B |
900/2000 |
940/37 |
1500/59 |
815×1220/32×48 |
150(125)/6 |
240/528 |
four |
|
MD4059A |
1800/4000 |
940/37 |
1500/59 |
610×915/24×36 |
150(125)/6 |
187/412 |
four |
|
MD4059B |
1800/4000 |
940/37 |
1500/59 |
815×1220/32×48 |
150(125)/6 |
240/528 |
four |
|
MD6059A |
2700/6000 |
940/37 |
1500/59 |
610×915/24×36 |
150(125)/6 |
187/412 |
four |
|
MD6059B |
2700/6000 |
940/37 |
1500/59 |
815×1220/32×48 |
150(125)/6 |
240/528 |
four |
