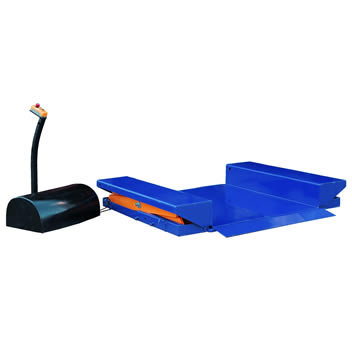

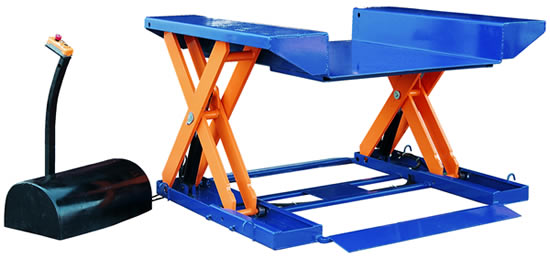

Super Low Profile Lift Table
Product Model :
  • HYL501
  • HYL751
  • HYL1001
  • HYL1501
Super Low Profile Lift Table      HYL Series

* Heavy duty design with larger platform
* These tables achieve a low closed height, eliminating the need for a pit installation.
* They are manufactured to all European safety standards including EN1570:1999.
* Remote power pack with pedestal and controls, protected to IP54.
* Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
* 24V control box with UP and DOWN buttons and emergency stop.
* External power pack equipped with a relief valve against overloading and a compensated
flow valve for controlling lowering speed. Power supply are AC 380V/50HZ/3phase.
* Hose burst safety valve to stop the lift table lowering in case of hose breakage.
* Removable lifting eyes to facilitate handling and installation of the lift table.
* Oiless bushings on pivot points.


Model

 Capacity

 Platform Size

 Min. Height

 Max. Height

 Power Pack

 Net Weight

 (kg)

 LXW(mm)

 (mm)

 (mm)

 (kg)

HYL501

500

1750×1270

25

800

 380V/50HZ,AC 1.1kw

450

HYL751

750

1750×1270

25

800

 380V/50HZ,AC 1.1kw

485

HYL1001

1000

1750×1270

35

800

 380V/50HZ,AC 1.1kw

510

HYL1501

1500

1750×1270

35

800

 380V/50HZ,AC 2.2kw

540
