Four Way Pallet Truck
Product Model :
|
Four Way Pallet Truck HPF series
* Unique 4-direcional movement capacity provides the flexibility to maneuver wide loads through standard aiales.

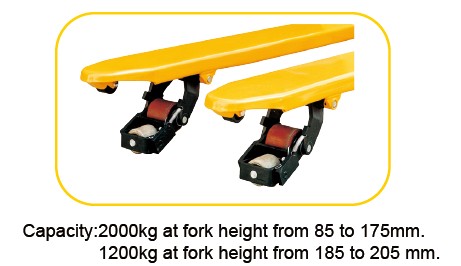

* An additional set of wheels allows pallet truck to be moved sideways in addition to be the conventional
forward and back directions.
* Move heavy loads. quickly and effortlessly, with convenient hydraulic power and industrial quality features.
* Trucks are constructed of 4mm thick steel with reinforced fork bracing.
* Include sealed ball bearings on wheels that are permanently lubed and polyurethane coated.
* Handle has a cushion grip with a 3-position lever.
.jpg)
|
Model |
|
HPF12S |
HPF12L |
|
Capacity |
(kg) |
2000/1200 |
2000/1200 |
|
Max. Fork Height |
(mm) |
205 |
205 |
|
Min. Fork Height |
(mm) |
85 |
85 |
|
Fork Length |
(mm) |
1150 |
1150 |
|
Width Overall Forks |
(mm) |
540 |
680 |
|
Rear Wheel |
(mm) |
Φ200 |
Φ200 |
|
Net Weight |
(kg) |
75 |
78 |
