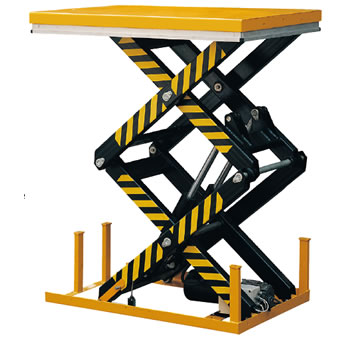

Double Scissor Lift Table
Product Model :
  • HD1000
  • HD2000
  • HD4000

Double Scissor Lift Table      HD series

* Heavy duty design.
* Meet EN1570 norm and ANSI/ASME safety standard.
* High quality power unit made in Europe.
Standard Safety Features
* Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.
* Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
* Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
* Safety clearance between scissors to prevent trapping during operation.
Other Standard Features
* Self lubricating bushings on pivot points.
* Removable lifting eye to handling and lift table installation.

 Model

 HD1000

 HD2000

 HD4000

 Capacity

 (kg)

 1000

 2000

 4000

 Lowered Height

 (mm)

 305

 360

 400

 Raised Height

 (mm)

 1780

 1780

 2050

 Platform Size

 LxW (mm)

 820x1300

 850x1300

 1700x1200

 Base Frame Size

 (mm)

 640x1240

 785x1220

 1600x900

 Lift Time

 (sec)

 35~45

 35~45

 55~65

 Power Pack



 380V/50Hz, AC2.2kw

 Net Weight

 (kg)

 210

 295

 520
