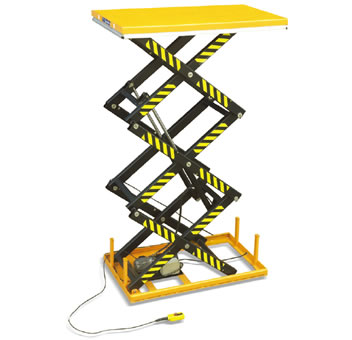

Three Scissor Lift Table
Product Model :
  • HT1000
  • HT2000

Three Scissor Lift Table      HT series

* Heavy duty design.
* Meet EN1570 norm and ANSI/ASME safety standard.
* High quality power unit made in Europe.
Standard Safety Features
* Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.
* Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
* Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
* Safety clearance between scissors to prevent trapping during operation.
Other Standard Features
* Self lubricating bushings on pivot points.
* Removable lifting eye to handling and lift table installation.

 Model

 HT1000

 HT2000

 Capacity

 (kg)

 1000

 2000

 Lowered Height

 (mm)

 470

 560

 Raised Height

 (mm)

 3000

 3000

 Platform Size

 LxW (mm)

 1700x1000

 1700x1000

 Base Frame Size

 (mm)

 1600x1000

 1606x1010

 Lift Time

 (sec)

 35~45

 50~60

 Power Pack



 380V/50Hz, AC2.2kw

 Net Weight

 (kg)

 450

 750
