Large Lift Table
Product Model :
  • HW500L
  • HW501
  • HW502

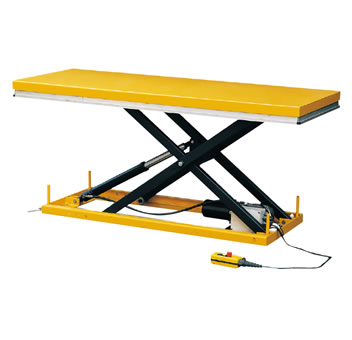

Large Lift Table      HW series

* Large platform for special size materials.
* Meet EN1570 norm and ANSI / ASME safety standard.
* High quality power unit made in Europe.



 Model

 HW500L

 HW501

 HW502

 Capacity

 (kg)

 500

 500

 500

 Lowered Height

 (mm)

 200

 180

 180

 Raised Height

 (mm)

 1000

 1000

 1000

 Platform Size

 LxW (mm)

 800x2000 (standard)

 1300×600

 1300×800

 Base Frame Size

 (mm)

 680x1615

 1210×585

 1210×585

 Lift Time

 (sec)

 20~25

 10~15

 10~15

 Power Pack



 380V/50HZ, AC 1.1kw

 Net Weight

 (kg)

 193

 121

 131
